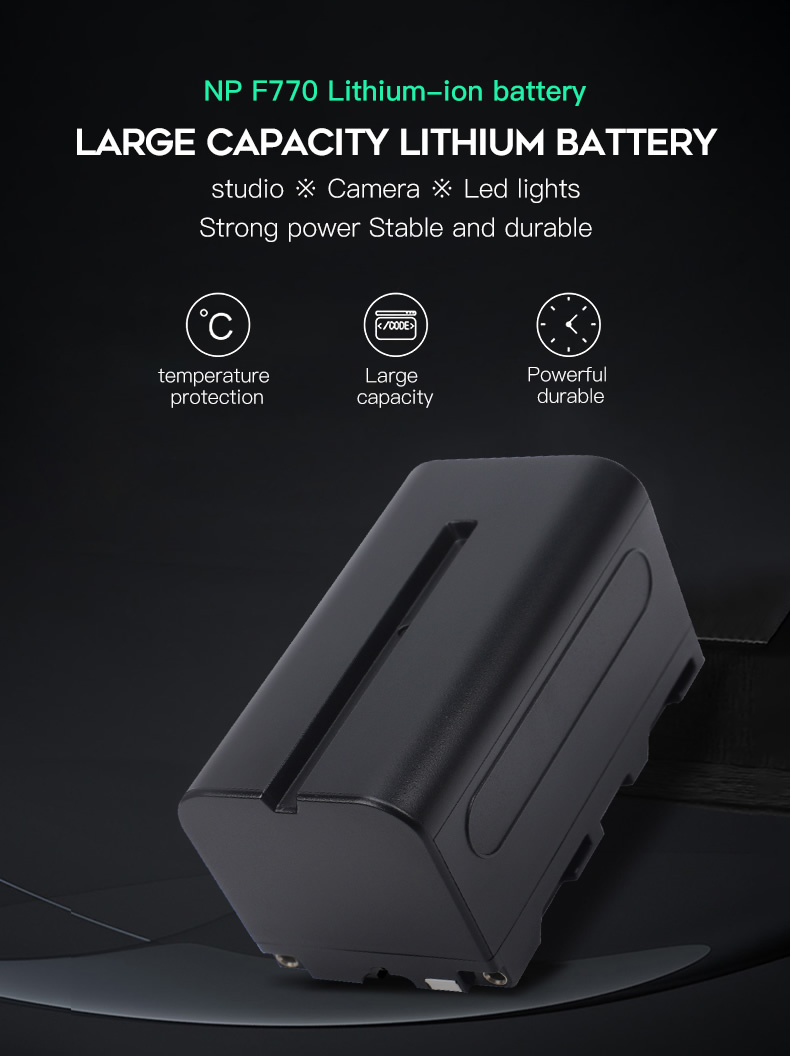

Camera Battery for Sony NP-F980 Battery F960 F970 Supplementary Light Camera Rechargeable Battery NP-F980 NPF980

Item

Performance

Remarks

Rated Voltage

7.2V

Charge limited voltage

8.4V

Discharge-off voltage

5.5V

Rated Capacity

10200mAh More capacity optional :10200mAh, 7800mAh, 6600mAh, 6000mAh.

Discharge at 0.2C

Minimum Capacity

10000mAh

Discharge at 0.2C

Charging Method

(CC-CV)

Standard Charging Current

2.04A

0.2C 0℃-+45℃

Standard Discharge Current

2.04A

0.2C -10℃-+50℃

Rapid Charging Current

3.06A

0.3C 0℃-+40℃

Rapid Discharge Current

3.06A

0.3C -10℃-+50℃

Total Resistor

≤230mΩ

AC 1kHz AC Resistor

Minimum current comsumption

60μA

Individual Battery weight

280g±10g

Electronic Scale

Imal External dimension (±0.3mm)

W=38.4mm
L= 70.4mm
H= 60mm (MAX)

Caliper Scale

Operating Temperature Range

Charge0˚C ~+45˚C
Discharge -10˚C~+50˚C

Humidity 65±20%

Long Term Storage

1.Storage time should be counted from the time of Delivery;
2.The battery is charged at ambient temperature(21~25) ℃ ;
3.with a constant current CC/CV at 0.2℃ to charge to 8.4V,and constant voltage;
4.charging to final current to 0.02C,then the battery is discharged with CC 0.2C;
5. to final voltage 5.5V, The discharge time is more than 5 hours.

Less than 1 year

Suit For

TRV1, TRV3, 200, 300, 3000, 500, 517, 910, V119, V15, V25, 820E, 900E, 2000E, 320E, 520E, 720E, 820E, 618E, 250E, VX2100E, PD150P,
100P, 190P, GV-A700, GV-D800, FD85, FD75, FD81, CCD-SC5, SC55, TR3, FX1E, 190P, DCR-TRV9E, 46E, 49E, 66E, 67E, 87E, 98E, 110E,
120E, 130E, 210E, 310E, 317E, 410E, 420E, 900E, 940E, 950E, TRV33E, NP500, V115, 610E, 710E, HVR-Z1C, HVR-V1C, FX7E, Z7

For Sony
